TailGater Tire Table Installation

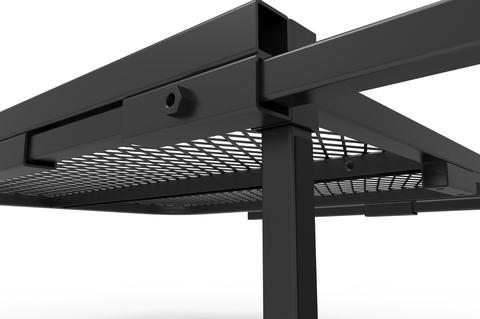

Install three jam bolts. There are two on the sides that will lock the rear tire support slider in place. The additional one is for the retractable leg located in the channel down the center of the table.

Press the silver push buttons to release each of the two small legs from the storage located on the bottom side of the table.

Insert legs into the square receivers on left and right sides next to the rear tire support slider with the bend in it. The legs will be pointed towards the bottom of the table and the grip tape will be pointed away from the tabletop towards the bend in the slider.

After installing both legs into their receivers, loosen the jamb bolts on the left and right side and pull rear tire support slider out about 12 inches.

Put rear tire support over the tire and down until the slider rests on the tire.

With one hand on the rear tire support and your thigh on the outside of the table, pull the table snug against the tire and tighten one jam bolt. Repeat the same for the other side.

Levelling from front of table to back can be accomplished by either raising the table and tightening it against the tire or loosening it on the tire allowing it to be lower at the end. Side to side levelling is accomplished by rotating the table on the tire.

For added strength and stability, release centre retractable support leg by depressing the silver push button on the side of the leg storage channel. You will need to reach up under the table to do this. There is a rectangle cut out in the channel located on the top of the table over the silver push-button where you can push the leg out while depressing the silver push-button if needed.

Angle the retractable leg towards the tire and rest it between the tire and ground which will help to avoid kicking or tripping on it. It can also be put straight up and down. Tighten the jam bolt when the leg is at the desired length.

If your tires are 32? and up, flipping over the rear tire support slider so the bend is down will allow for more grip on the tire.

CAUTION:

*TailGater Tire Table is NOT a step or a seat. Using the table as either could result in injury and damage to the table.

*Remove the table before driving.
