Raptor 90W 20? LED Light bar

Regular price
$399.00
Sale price
$399.00
Regular price
$399.00
Tax included. Shipping calculated at checkout.
Colour Temperature:
Beam:
  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Google Pay
  • Afterpay
  • Zip
Fast shipping
Sameday / next day shipping
Exclusive Brands
We stock a range of
premium brands that
are exclusive to A247.

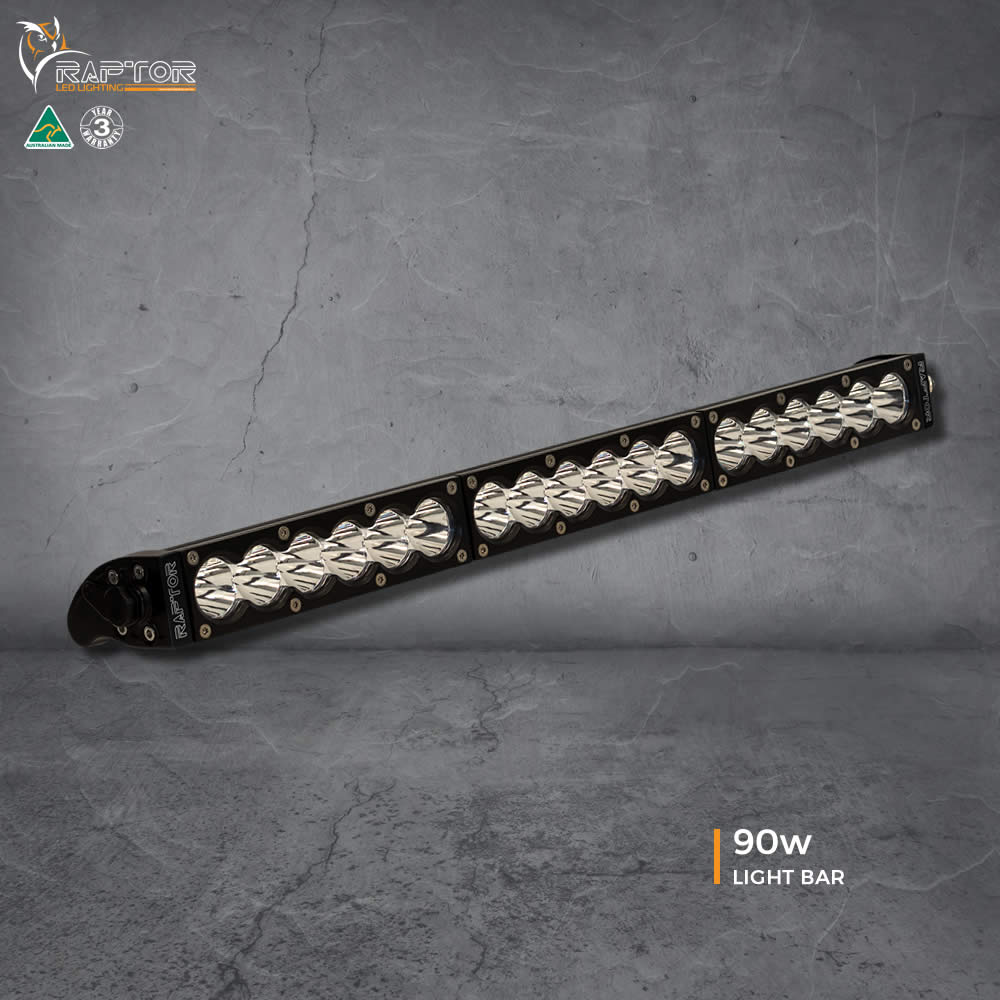

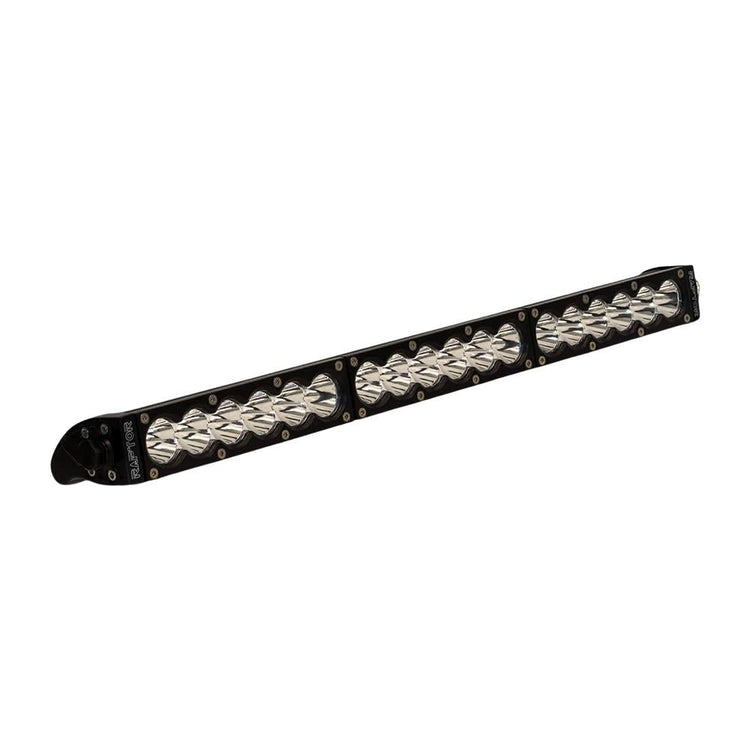

Raptor 90W 20″ LED Light bar

Description

The RAPTOR LED Light Bars are manufactured from high pressure extruded aluminium, giving an extremely strong but light body.  This, along with a high impact polycarbonate lens make the Raptor light bars exceptionally tough. The open-optic reflector gives a combination beam with very good distance and peripheral width of 100° from one lamp type.

To ensure maximum driver comfort the light bars are available with either 4000k or 5700k Colour Temperature.

All RAPTOR lamps come complete stainless steel pivot mounting brackets and stainless steel fixings. As with all Raptor products, the light bars are manufactured in Australia and covered by a 3-year warranty for total peace of mind.

90W RAPTOR LIGHT BAR SPECIFICATIONS
Wattage 90
Light Source 18 x 5w LEDs
Light Output – Raw 10800 Lumens
Light Output – Effective 8650 Lumens
Voltage 9-36V
Current Draw 6.7A @ 13.5V
Operating Temp. -40 to 80 Deg C
Waterproof Rating IP67
Connector Type 2 Pin standard Deutsch
Housing Die-Cast aluminium
Lens Construction Polycarbonate
Bracket Stainless Steel
Colour 4000K or 5700K
Lifespan 50,000 Hours
Dimensions 500 x 51 x 73mm
Mounting Suitable Base and side mount
Beams Available Combo
Warranty 3 Years
Part Number RAP090LB

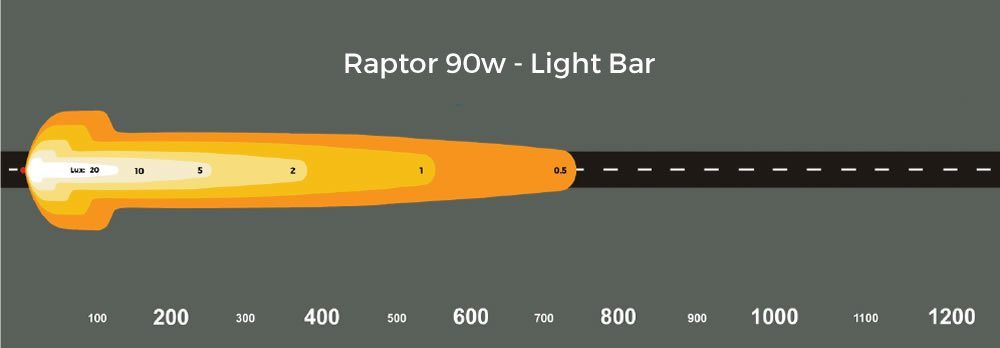

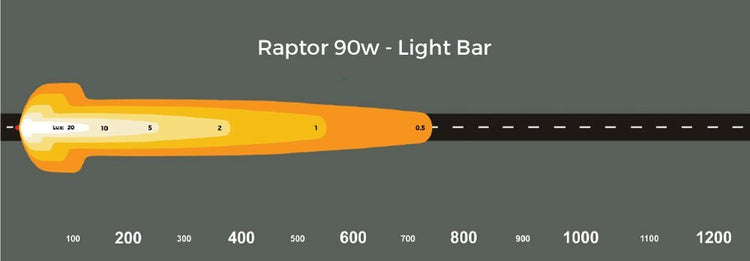

DISTANCE AT 1 LUX 538 METRES
