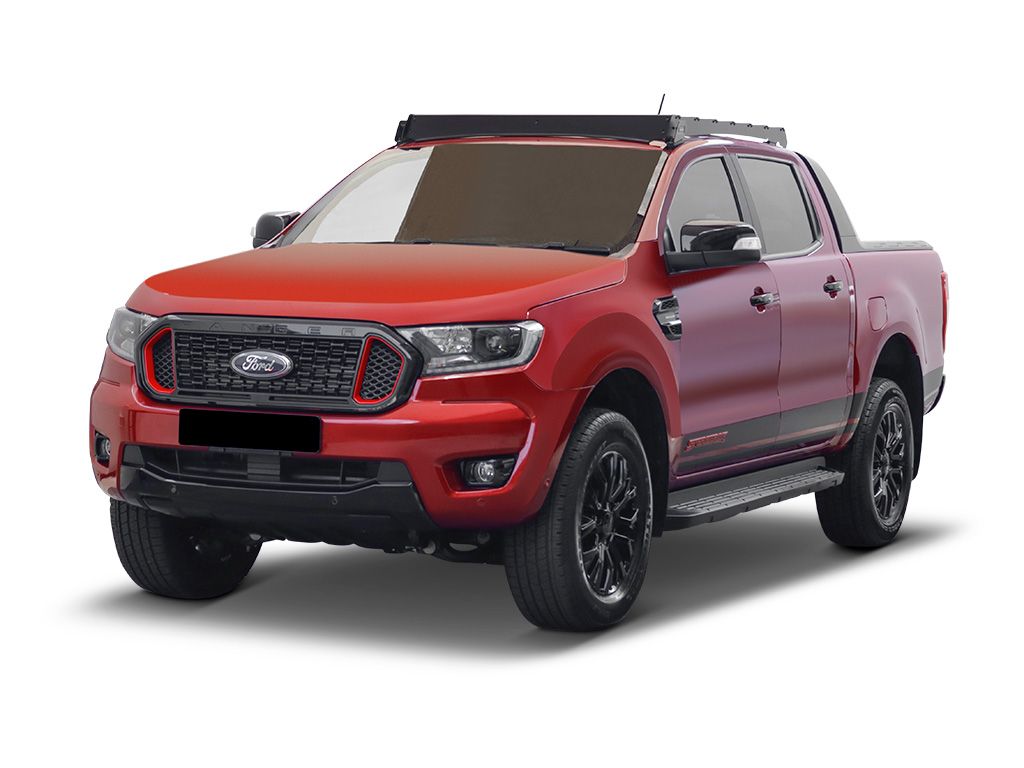

FORD RANGER T6 / WILDTRAK / RAPTOR (2012-2022) SLIMSPORT ROOF RACK KIT - BY FRONT RUNNER

• Compatible with the Ford Ranger T6 SuperCrew (2012-2022), Ranger Wildtrak SuperCrew (2014-2022) and Ranger Raptor SuperCrew (2019-2022).
• Low-profile flat deck Slimsport rack has a load carrying area of 1272mm (50") x 1150mm (45.27").
• Sleek side rails have integrated mounting feet.
• High-strength aluminum slats have top and bottom T-slots suitable for all Front Runner top mount accessories.
• Effortlessly access your Slimsport cargo with the Handle/Light Slimsport Rack Bracket (sold separately).
• Easily add on the Slimsport/Slimpro Van Side Mount Accessory Bracket / Small – by Front Runner for all Front Runner side mount accessories (sold separately).
• Included standard full fairing with rubber edge trim makes the rack ultra-quiet.
• Need a lightbar? The optional Ford Ranger (2012-2022) Slimsport Rack 40" Light Bar Wind Fairing has a 40" cutout to allow use of 40" LED Slim Light Bar VX1000-CB / 12V/24V / Single Mount (both sold separately).
• Fitment guide and all mounting hardware included.
• 6"/T30 Torx Allen Key for Slimsport Rack is required for installation. (sold separately)
• Drilling required for fitment (all hardware included). NO DRILLING REQUIRED FOR WILDTRAK MODELS
• Note: Under Rack Tables and some side mount accessories such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets are not compatible with the Slimsport rack kit range.

KSFR004T - Ford Ranger T6 / Wildtrak / Raptor (2012-2022) Slimsport Roof Rack Kit - by Front Runner

Consisting of:
1 x KSFR002 - Ford Ranger T6/Wildtrak (12-2022)Ssport RR K
1 x RRAC230 - Ford Ranger Slimsport Rack Wind Fairing
1 x RRAC971 - Protection Strip
Installation Hardware
Fitting Instructions

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Assembled Rack Kit Dimensions:
1411mm (55.6") L x 1222mm (48.1") W x 147mm (5.8") H

Approximate Installed Weight: 24.52kg (54.06lbs)

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.

Shipping Dimensions:
Width: 330mm (13")
Length: 1700mm (67")
Height: 160mm (6")

Shipping Weight:
Weight: 24.52kg (54lbs)
