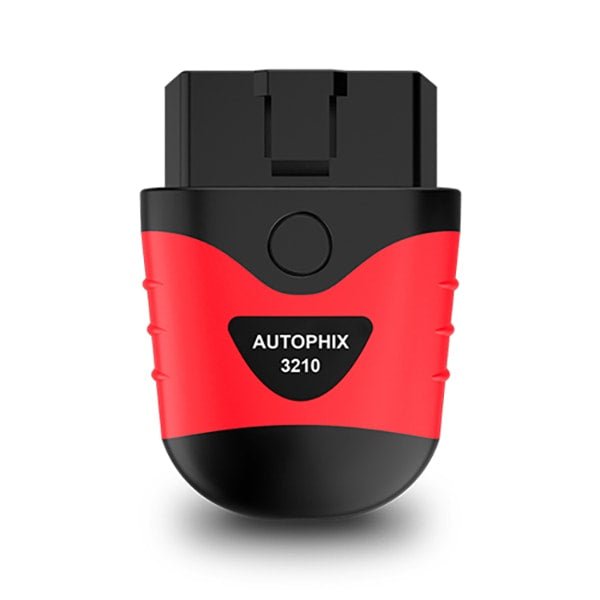

AUTOPHIX 3210 OBDII + BLUETOOTH Vehicle Scanner

AUTOPHIX 3210 for Mobile

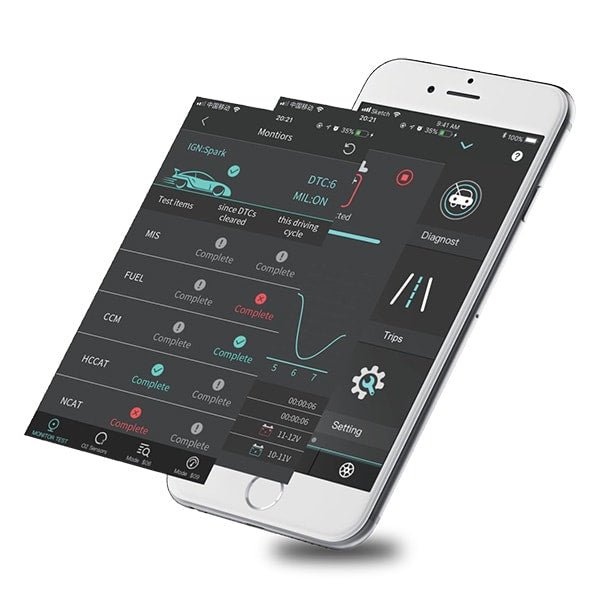

AUTOPHIX 3210 is a driving mate that communicates with your vehicle terminal to complete fault diagnosis and driving assistance by smart phone or tablet.

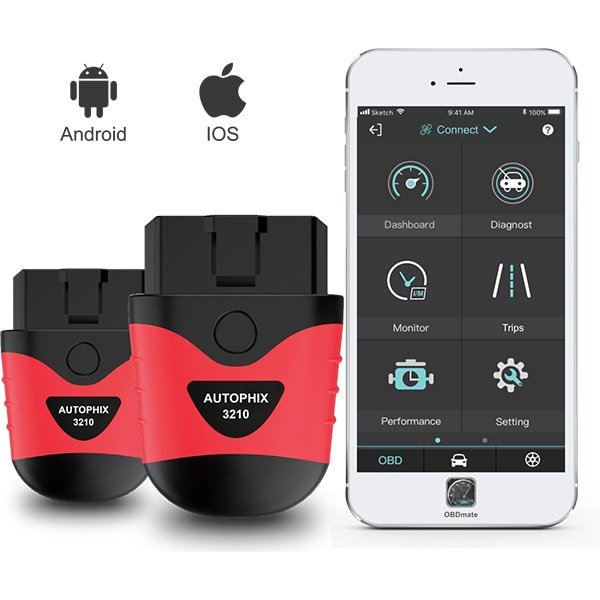

It can support IOS and Android devices by Bluetooth.

Main Features & Functions
Reads & clears trouble codes
Views freeze frame
Reads data stream
Displays I/M readiness
Displays O2 sensor test data
Battery voltage test
Transmission detect
EVAP system test
Performance test

Compatibility
Compatible with vehicles produced after 1996 made in the United States, Europe, Asia in line with OBDII Protocol
(Including CAN J1850PWM, J1850VPW, IS09141 and KWP2000 Protocols) Support some diesel-powered cars. For example, light-duty trucks, pickups and so on.

Weight .5 kg
Dimensions
64mm x 47.3mm x 24.5mm

Working Voltage
9~16V DC

Working Current
<40mA @12.9V

Bluetooth Frequency
2.4GHz

Bluetooth Profile
Bluetooth 3.0+EDR & BLE 4.0

Operating Temperature
-30°C ~+70°C

Storage Temperature
-40°C ~ +85°C
